「CUSTOMIZE KIT/ TM VSR-10」
PRODUCT CODE:647931 / 647948
X-FIRE Logo
Customize kit for TM VSR-10.

!!NOTICE!!
AEG Inner barrel & Out.13mm spring are necessary to use this chamber.

inner barrel length is here.
(You can't use this chamber with VSR-10 original inner barrel.)


About inner barrel length.
The RAVEN Inner barrel of the best length for VSR-10 HOPUP chamber debuts.
The length is
-430mm RAVEN AEG inner barrel for Pro-sniper,
-554mm RAVEN AEG inner barrel for light outer barrel 690 or Front bull barrel L.

Their shapes are same as TM AEG.(Not VSR barrel)

NOTICE:
You can't use VSR-10 HOPUP chamber with VSR-10 original inner barrel.
Please use TM AEG shape inner barrel.


Please click the links of following image.








Excellent trajectory!
This chamber & W hold chamber packing give you excellent trajectory.
HOP bar is one pair. You can adjust a ballistic trajectory finely.
And, if W hold chamber packing included in this set is used with this chamber,
you can draw out the highest power of two hop bars.

We make the best accurate chamber by CNC.
It's an important parts about Sniper Rifle to aim precisely.It's an only chamber by all machined.

We use the shape of AEG barrel
We recommend to use PDI 01,04,05,08 Inner Barrel because they are made by using PDI HOP Chamber.
So you'll get a cynergy that this chamber eject a smooth Air, PDI barrel makes Bullet rapidly & far away.

And, this chamber is for inner barrel that is TM AEG shape.
So, inner barrel that was not able to be used can be used for VSR-10 up to now.

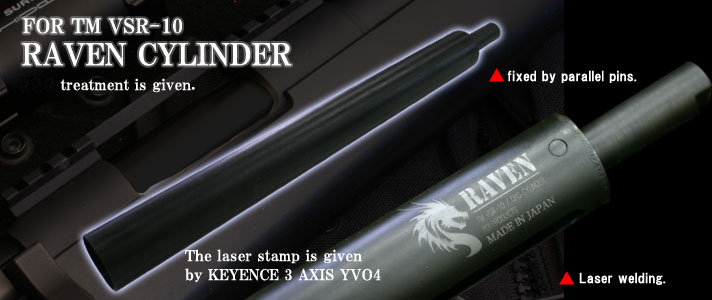

RAVENシリンダー

New design and new material!
TM VSR-10 raven cylinder is made of CS, and it is given QPQ treatment.

QPQ sear has high durability
QPQ is adopted for the slide of SIG.
PDI adopts QPQ to give the sear durability, anti-rust, and blacken.
Particularly, QPQ's corrosion-resistance, fatigue-endurance, and abrasion-resistance are better than hard chrome plating.
*PDI entrusts QPQ processing to Nihon Parkerizing Ltd.

The cylinder and cylinder boss are united by φ3mm parallel pins and YAG laser.




Taperes for Air ejection.
the taper angle can blow off air effectively. They make stable output.
To keep airtight, this nozzle has O-ring.




It is one piece body, and light!
PDI's new model piston for original trigger.
It is one piece, and made of delrin, and is lighter than SUS piston.



VSR プレシジョンシリンダーSET

CS All machined, High durability.
Made of CS. It has a thrust ring that made of derlin.
The thrust ring reduces the load to guide base.


※VSR-10 has Unique trigger system,so it may caused fragile of cocking. Please check
here.

Sale \ 15,820
We deem to get your agreement for the below policy when you place an order.

VSR RAVEN CYLINDER VSR CYLINDER VSR Cylinder VSR Cylinder

VSR-10 New Trigger

CHAMBER

BULL barrel VSR bull barrel base VSR FRONT BULL BARREL G VSR FRONT BULL BARREL P VSR FRONT BULL BARREL L

ライトアウターバレル VSR-10 OUTER BARREL OUTER BARREL VSR-10 OUTER BARREL VSR-10

Please read the below policy
We deem to get your agreement for the below policy when you place an order.
○We couldn't assure the trouble with your lack of skill.
○It may be required to adjust to fit because our custom parts reduce the clearance of normal parts to lead the best condition.
○Do not use the 3rd party products.Because we design with Normal parts or PDI-products.
 If you ignore our rule & breake up your guns、we couldn’t be responsible.
○It is possible to change the spec or design.
