「KOUTETSU CYLINDER SET/TYPE96」
PRODUCT CODE:640529
X-FIRE Logo

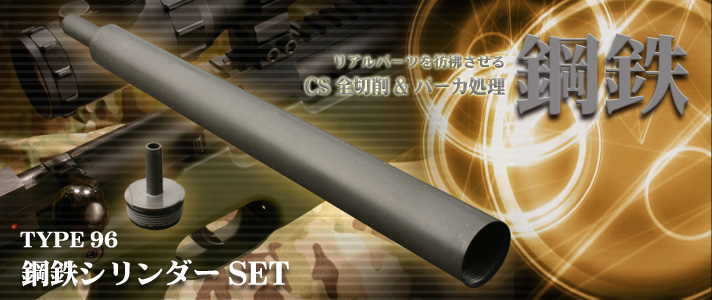

タイプ96 鋼鉄シリンダーSET

For Maruzen Type 96 after 2nd lot.

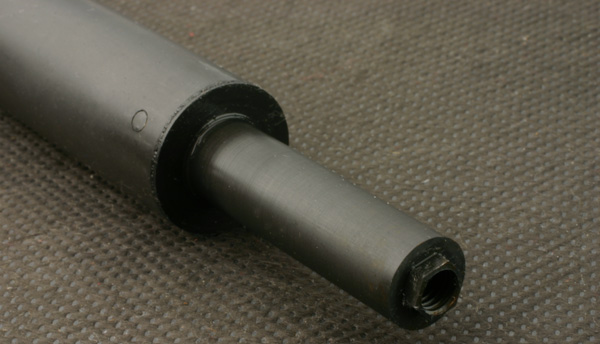

This set has KOUTETSU(CS) Cylinder & KOUTETSU(CS Taper Cylinder Head.
※We recommend you'll use PDI piston & Guide.

Inner Dia.tolerance is ±0.01mm even CS(carbon steel)
Generally,steel is really cheaper material compared to Aluminium or Stainless steel.
But we found & got high auality material as carbon steel.Its tolerance is same as stainless pipe.

Done Parkerized "MIL-P-16232D"
We processed "MIL-P-16232D" to be get realism.
※This is not beauty cause real rifle is required only decay durability.

タイプ96 鋼鉄シリンダーSET

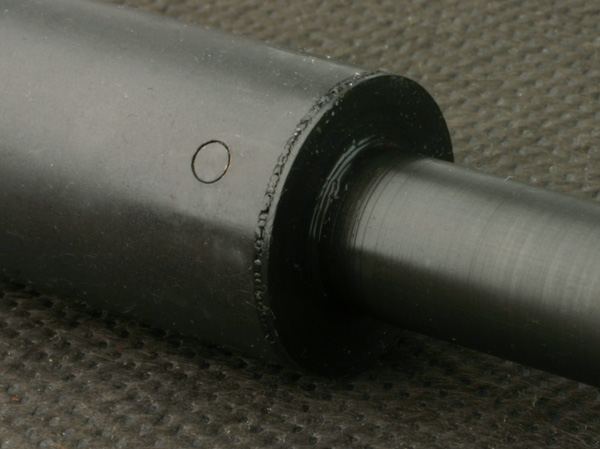

We use "Laser welding" & "4 parallel pins" for combination of boss & body.

タイプ96 鋼鉄シリンダーSET

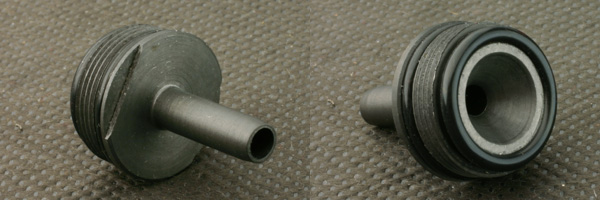

Come with the KOUTETSU Cylinder Head.

タイプ96 鋼鉄シリンダーSET

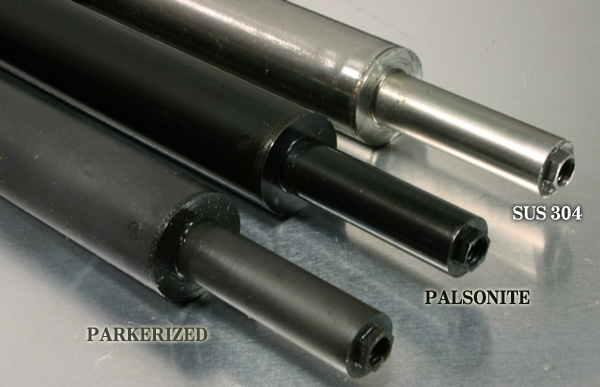

The difference between Parkerized ,Palsonite & Precision

タイプ96 鋼鉄シリンダーSET

タイプ96 鋼鉄シリンダーSET
タイプ96 鋼鉄シリンダーSET
タイプ96 鋼鉄シリンダーSET

About FPS
As compared to"Precision(Stainless steel)","Palsonite" & "Parkerized"
Situation;In the room、05 Inner Barrel 495mm、PDI 85 SPRING、PDI HOP Chamber(the strongest hop level) & HD piston.
"Precision(Stainless steel)" 85m/sec
"Parkerized" 87m/sec
"Palsonite" 91m/sec
Palsonite is the best cause that process is to be less friction.
Parkerized has not less friction,so it's almost same as just stainless steel.

About Corrosion Control
As compared to"Precision(Stainless steel)","Palsonite" & "Parkerized"
Precision is the most resistant for rusting.
Palsonite is tend to rust compared to just stainless steel.
Parkerized process is also not for resistance. So please keep oil maintenance if you want to keep clean.

sold out!
We deem to get your agreement for the below policy when you place an order.
Sold Out!

Please read the below policy
We deem to get your agreement for the below policy when you place an order.
○We couldn't assure the trouble with your lack of skill.
○It may be required to adjust to fit because our custom parts reduce the clearance of normal parts to lead the best condition.
○Do not use the 3rd party products.Because we design with Normal parts or PDI-products.
 If you ignore our rule & breake up your guns、we couldn’t be responsible.
○It is possible to change the spec or design.
