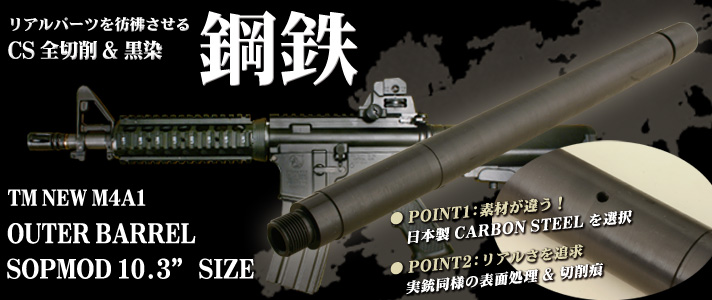

「CS OUTER BARREL SOPMOD 10.3' SIZE / TM NEW GENERATION AEG M4 SOPMOD」
PRODUCT CODE:646552
X-FIRE Logo
リアルアウターバレルSOPMOD10.3"サイズ/TM AEG M4A1

※The reason for seeming glossy to the image above is that oil is painted.
For Tokyo Marui AEG M4 SOPMOD.
※Be careful when this product is built in. Please peruse「ATTENTION」 prepared on this page.

"Realistic roughness" is more important than "Beauty" for the CS series.
A beautiful stainless barrel and the duralumin barrel are good, but we propose real type barrel that has roughness like the real thing, and made of carbon steel.

10.3 inches of the CQBR(Close Quarter Battle Receiver) size are imaged !

We manufacture short size 10.3inch" barrel , because representative of SOPMOD is Mk18 MOD 0. We produce it sticking to the short from the front sight.

This product is made of carbon steel and inside diameters is tight.
As a result of giving priority to accuracy disregarding the material cost, we obtained the high quality carbon steel made in Japan.
This product firmly holds the inner barrel, and reduces the blur at the shooting.

All CNC machined&US standard "MIL-P-16232D" (Parkerizing) processed.
This product is given "MIL-P-16232D" (Parkerizing) that is processing equal with the one given to a real gun, and it is a peculiar parka color.
It is excellent also in the effect of rust prevention.
Because an infusible film of a thin phosphoric acid manganese system is generated to the surface, the abrasion resistance of the metal is improved. and the product's life-cycle is extended.
The surface treatment is being given to this product by the Japan Parkerizing Co.

SOPMOD has peculiar circumstances
Because unlike next generation's AEG M4A1, recoil system is built into back stock, some notch became unnecessary in this product, and it was made to straight shape. Moreover, because the stamp is seen from the hand guard port, we don't give it to this product though the laser stamp was given to LMT10.5".

The size of the inner barrel is P90.
In a past, short size (285mm), it sticks out from the muzzle. In G36C,P90 size (247mm), it doesn't stick out, and the best size.

※Because this product is made only for M4 SOPMOD, it is not possible to use it for next generation's AEG M4A1.
It becomes possible to use only when changing to an outside battery.

全長
M4

SOPMOD

SOPMOD

SOPMOD


※The following images use REAL OUTER BARREL LMT10.5" M4A1(duralumin).

Difference point with pure barrel 1
The function to have omitted part is provided in consideration of the cost performance.

"Hole that fixes front sight"

Past M4 did not have the screw. We canceled it, because we had judged that there was no problem in past method for fixing.

穴

Difference point with pure barrel 2

The position of the nut was made to be advanced a little in consideration of shaking of the hand guard in the state not remodeled. As a result, the rigidity rises and the fit feeling is improved.

穴

M3 screw that cannot be confirmed

The M3 screw on the reception desk side doesn't understand the usage as of July, 2009.It can be guessed that it is a hole to fix PEQ, RIS , and RAS, that will be put on the market in the future. But we cannot say it is certain. Therefore, please understand that It cannot be asserted that it is possible to correspond to The development in the future.

穴

attention

A considerable technology and the knack are necessary to take M4 faction apart. The maximum problem is "Difficulty of taking the around the neck apart. Whether this "Barrel lock ring" can be removed is a point. Though it is unconfirmed, it seems to be easy to remove the M4 series since second lot comparatively. Though we make and opened a special wrench...
レンチ
Then, the ring came to come off. However, it is not possible to be relieved still for a while.
If power is put too much, it is transformed because the lock is forcibly released.
The important one is "Barrel lock ring" and "barrel base".

リング ナット
"Barrel lock ring" "Barrel base"


These influences the strength of the main body and the barrel directly. When these are transformed, strength around the neck is lost, and It becomes impossible to return to original as long as parts are not exchanged. Please do carefully. It might be transformed even if it does carefully.
Because there is no strength in the material.
Especially, because barrel base is made by zincky and has no thickness, it is transformed indeed often. It produces it later because it is thought that the custom parts are necessary for this.

Next, please note "barrel nut" related to the fixation of the hand guard.
The M3 screw to fix the nut of the real outer barrel that PDI made, the position is adjusted.
As a result, the hand guard side is cut down because it rubs against the nut when the hand guard is set.
However, trouble is not caused by this wear-out. It was able to become easy to insert.
干渉

When there is no strength on the neck:
When there is no strength on the neck by the transformation and damage, the method of placing a thin spacer between barrel base and barrel lock ring is effective. Some shaking can be decreased by doing so.
スペーサー

When you cannot install the front sight well:
The ditch for the site is cut down a little shallowly.
Please cut down thinly with round stick file when feeling that tightness.
It is more effective that the inside diameter of the front sight is cut down with the emery paper.
溝

Sale \ 5,460
We deem to get your agreement for the below policy when you place an order.
Sold Out!!

Please read the below policy
We deem to get your agreement for the below policy when you place an order.
○We couldn't assure the trouble with your lack of skill.
○It may be required to adjust to fit because our custom parts reduce the clearance of normal parts to lead the best condition.
○Do not use the 3rd party products.Because we design with Normal parts or PDI-products.
 If you ignore our rule & breake up your guns、we couldn’t be responsible.
○It is possible to change the spec or design.
